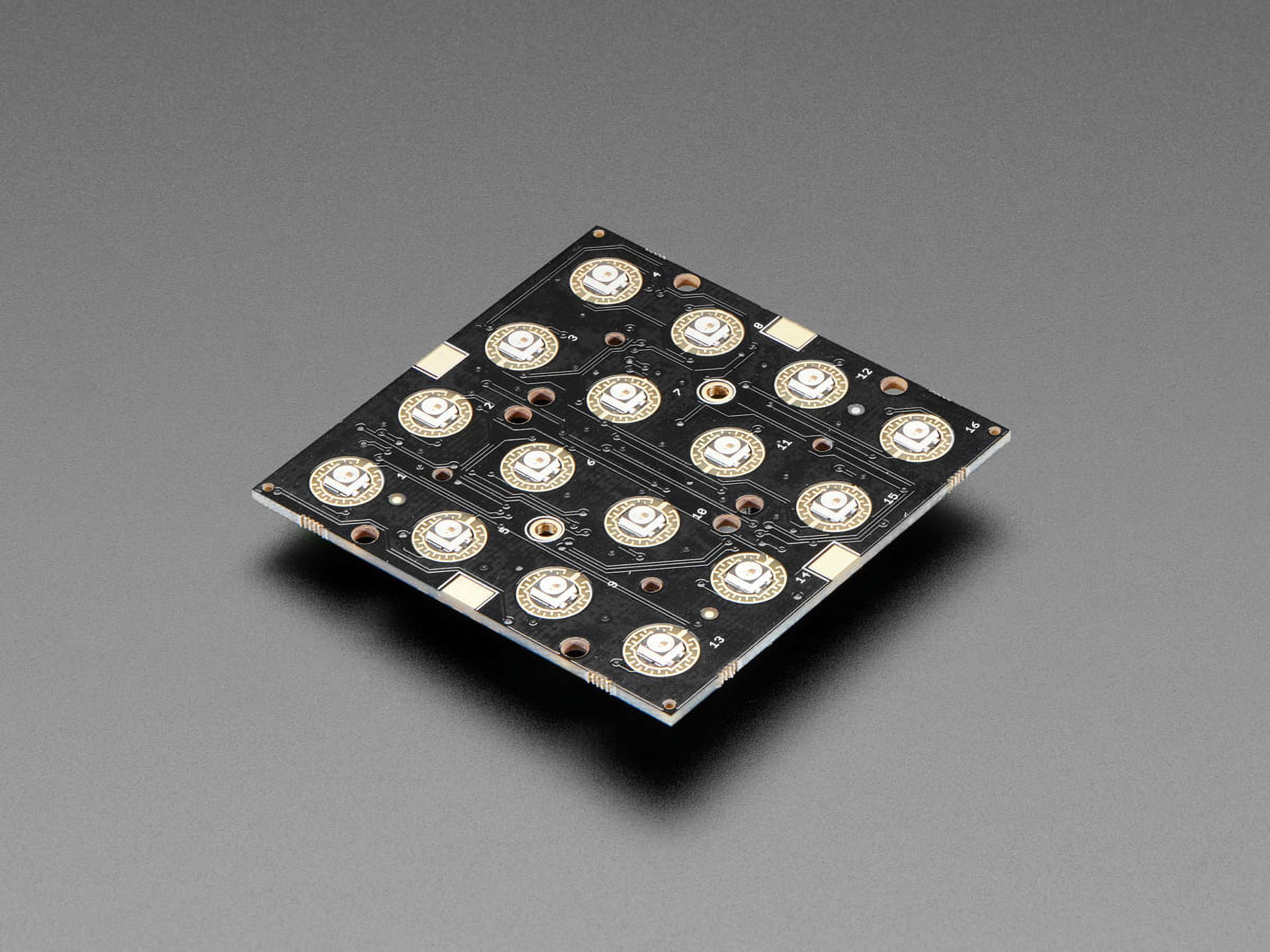

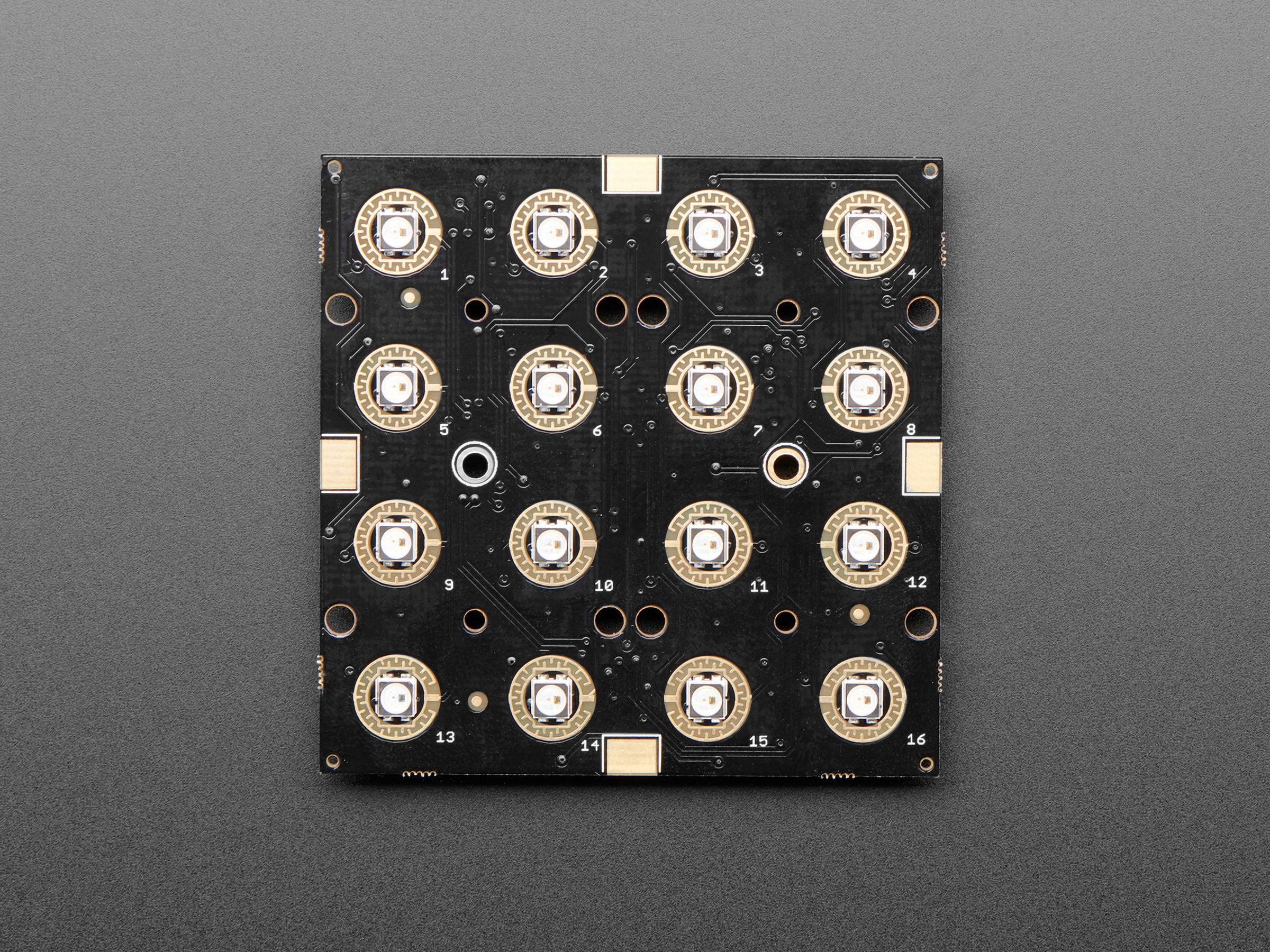

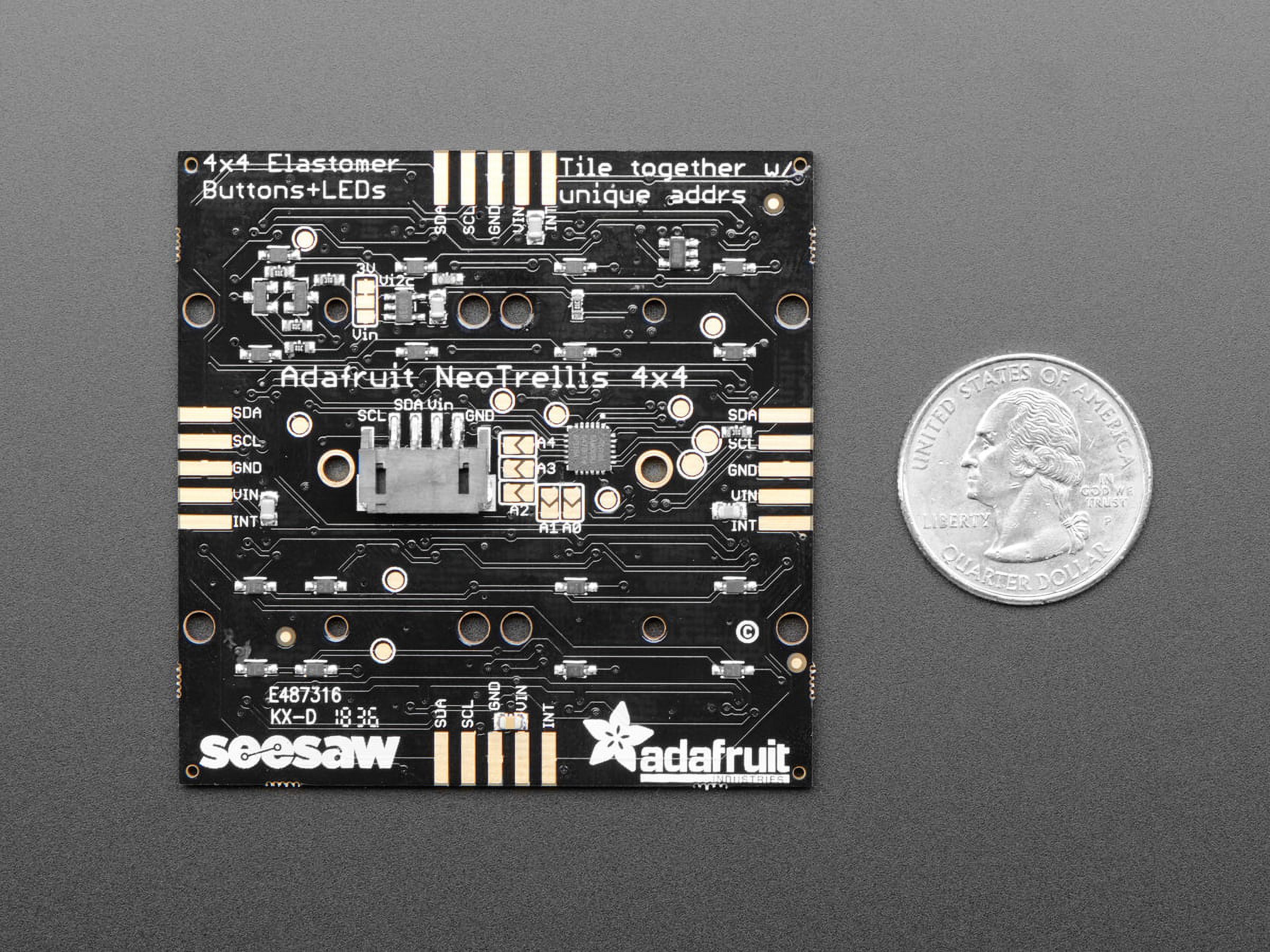

Adafruit NeoTrellis RGB Driver PCB for 4x4 Keypad

<p>Key Features:</p><ul> <li>4x4 button pad board</li> <li>Button management and LED driving handled over I2C.&nbsp;</li> <li>Arduino and Python compatible</li> <li>Tile up to 32 boards together by soldering them edge-to-edge and soldering closed the I2C address jumpers, then use one I2C connection for <em>all</em> tiled NeoTrellis boards</li></ul><p>These 4x4 button pad boards are fully tile-able and communicate over I2C. With 5 address pins, you've got the ability to connect up to 32 together in any arrangement you like.&nbsp;With our trusty seesaw I2C-to-anything chip, you don't even need to manage the NeoPixel driving. That's right! Both the button management and LED driving is completely handled for you all over plain I2C. With both Arduino/C++ and CircuitPython/Python library support, you can use these pads with any and all microcontroller or computer boards.</p><p>Perfect for your next cool interface, MIDI instrument, control panel...whatever could benefit from beautiful diffused colorful buttons. For fast connection to a single board, we include a JST-PH 4-pin connector that will give you power+data access. It's Grove compatible (the cable fits, even though its not the exact same connector), or you can use a JST-PH 4 pin cable.</p><p>Item Specifics<br>1 - NeoTrellis board with seesaw chip<br>16 - NeoPixels (pre-soldered)<br>Size: 2.4" x 2.4" x 0.2"<br>Weight: 13.3g<br>This board/chip uses I2C 7-bit addresses between <strong>0x2E&nbsp;</strong>to <strong>0x4D&nbsp;</strong>selectable by soldering jumpers on the back of the board.<br>Elastomer button pad not included</p>

• 4x4 button pad board
• Button management and LED driving handled over I2C.
• Arduino and Python compatible

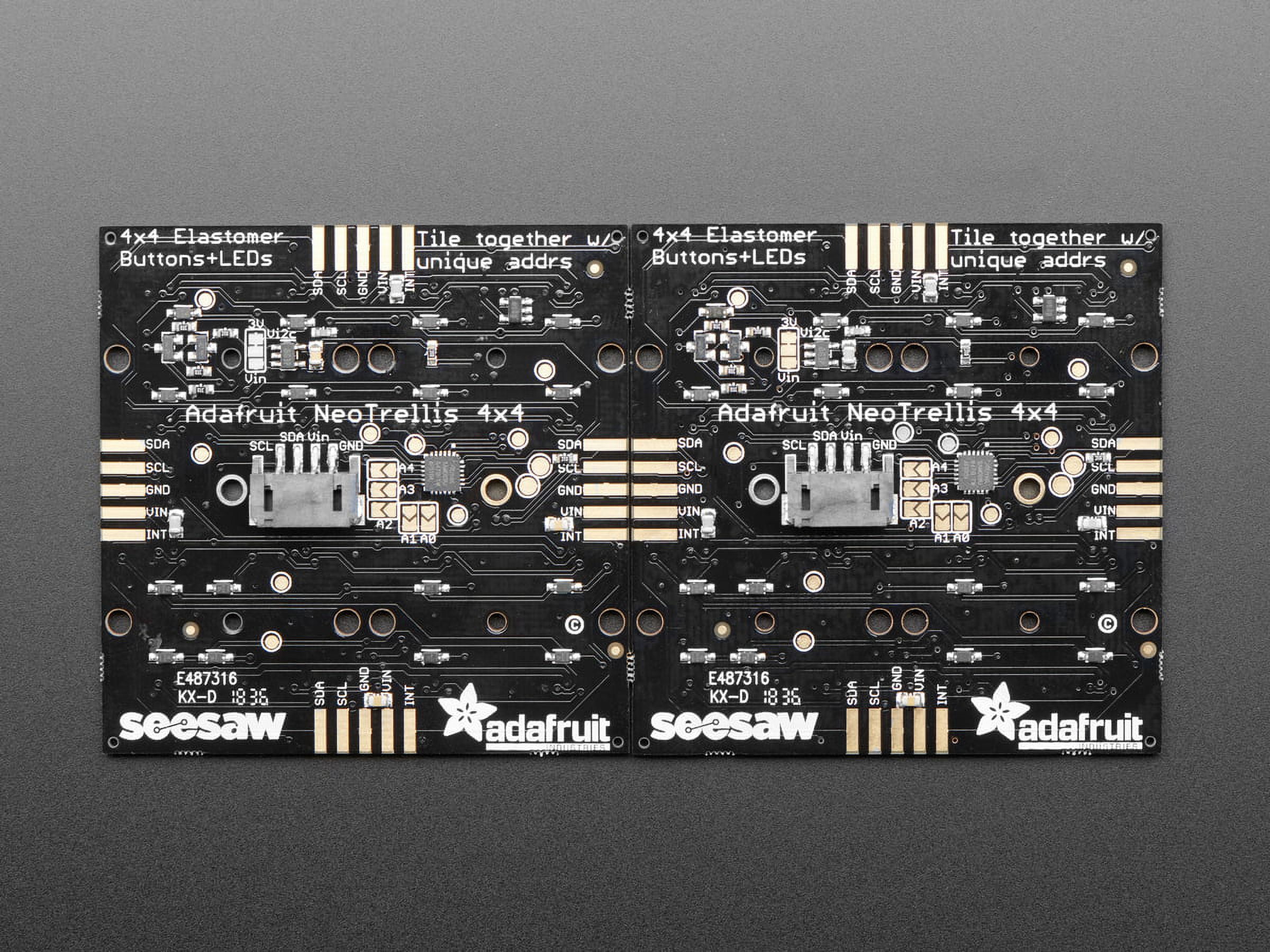

• Tile up to 32 boards together by soldering them edge-to-edge and soldering closed the I2C address jumpers, then use one I2C connection for all tiled NeoTrellis boards
