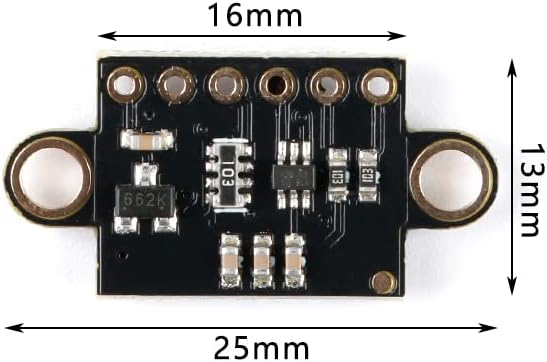

VL53L3CX Laser Ranging Module 3M Multi-Target Detection Measurement ToF Highly Integrated Anti-Interference High Precision Ranging Module for IoT Service Robots and Vacuum Cleaners

Features Fully integrated miniature module Emitter: 940 nm invisible laser (VCSEL) and its analog driver Low-power microcontroller running advanced digital firmware Fast, accurate distance ranging Histogram based technology Up to 300 cm+ detection with full field of view (FoV) Immune to cover glass cross-talk and fingerprint smudge at long distance with patented algorithms (direct ToF) Dynamic fingerprint smudge compensation Short distance, high accuracy linearity Multi target detection and distance measurement Typical full FoV: 25 ° Easy integration Reflowable component Part-to-part or generic shape crosstalk calibration available Single power supply Works with many types of cover glass materials I2C interface (up to 1 MHz) Xshutdown (reset) and interrupt GPIO to optimize ranging operation C and Linux full set of software drivers for turnkey ranging

• The VL53L3CX is the latest Time-of-Flight (ToF) product, combines a high performance proximity and ranging sensor, with multi target distance measurements and automatic smudge correction
• The miniature reflowable package integrates a single photon avalanche diode (SPAD) array and physical infrared filters to achieve the best ranging performance in various ambient lighting conditions, with a wide range of cover glass windows.
• The VL53L3CX combines the benefits of a high-performance proximity sensor, withexcellent short distance linearity, together with ranging capability up to 3m
• With patented algorithms and ingenious module construction, the VL53L3CX is alsoable to detect different objects within the field of view (FoV) . The ST histogram algorithms allow cover glass crosstalk immunity beyond 80 cm, and dynamic smudge compensation.
• Suitable for Service robots and vacuum cleaners; Sanitary; Smart buildings and smart lighting; IoT; Laser assisted autofocus (AF); Video focus tracking assistance
